45’ Bahamas Cruiser

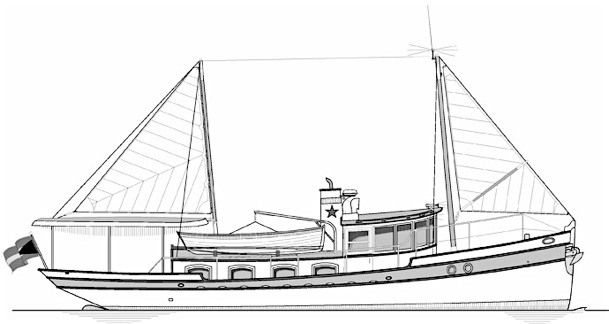

Preliminary work on a 45‘ (13.72m) cruiser for a repeat client in the Bahamas. Based on John Alden’s 48’-6” Pioneer - itself influenced from workboats of the day.
Construction is single-chine plywood/epoxy/‘glass, with a layout that allows for visitors in a double guest cabin.

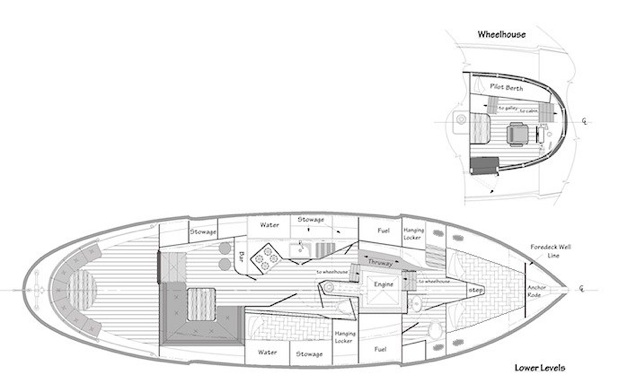

General Arrangement
Specifications
LOD
LWL
Beam
Draft
Displacement
D/L
Power
45’
38.5’
13’
3.25’
35,000 lbs.
274
200 hp Diesel
Bahamas Cruiser Movie
13.72m
11.73m
3.96m
0.99m
15.88t

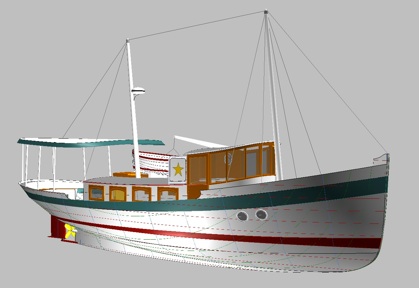

Designed with TouchCad
